Rebar Detailing

  1. Home
  2. Rebar Detailing

RDS is a leading rebar service company specialized in detailing, drawing, 3D modeling and estimation. We have the expertise and the manpower to detail over 2,500 tons of rebar per month. For nearly a decade, we have been offering the service in following industry standards which include ASTM, ACI, CRSI, AASHTO, BS 8666 to our clients all over the world. The detailing and estimation services which we provide are ideal for structural engineers, rebar fabricators, steel erectors, detailers, general contractors, concrete contractors, and designers.

What We Do – As a Rebar Detailer

Here at RDS, our team of skilled rebar detailers prepares shop drawings for the placement of the reinforcing steel. They provide the precise details on bends, shapes and lap splices to meet the requirement of your specific project. Any issues regarding project constructability are tackled instantly before the first piece of rebar is bent or sheered. The detailed drawings provided by our rebar detailers often help our contractors to visualize the structures. In fact, with these detailed drawings, the task of ironworkers are highly simplified, as they know where to place and thus reduces the cost of installation.

We mainly focus rebar detailing for civil engineering projects which include huge foundations, stadiums, elevated railway structures, superstructures for bridges, school buildings, public buildings, high-rise buildings, shopping malls, marine structures, auditoriums, hospitals, treatment plants, parking garages, walls, slabs, stairs, and canopies.

Specialization in Rebar Detailing includes


  • Foundation details
  • Rebar shop drawings
  • Rebar 2D & 3D modeling
  • Bar listing in ASA, SOLUE & SHEAR97 format
  • Total rebar estimation
  • Footing detailing
  • Grade beam detailing
  • l/ S of beams and columns
  • Concrete joint and slab details
  • Roof truss and joint details.

  • Concrete masonry detailing.
  • Shear walls.
  • Concrete tillt-up panels.
  • Rebar detailing, drawing, estimating, and 3d modeling.
  • Bar bending schedules.
  • 3d modeling of Rebar using Tekla structures.
  • All building elements and bridges.
  • Quality take-offs.
  • As-built drawings.

Our estimates aid your goal and budget with your project!


Rebar Estimating Service

Experience is the key skill for rebar estimation process. Our team of rebar estimators has 20+ years of combined experience. We estimate your complete services and materials that are required for the project. The estimation service ensures that the project runs on the minimum costs, reduced storage space at site location, and stay with your time schedule. We calculate and offer accurate quotes to our clients which include materials, accessories and erection costs.

International Standards we follow


  • AASHTO – American Association of State Highway and Transportation Officials.
  • ACI – American Concrete Institute.
  • ASTM – American Society for Testing and Materials.
  • BS – British Standard.
  • CRSI – Concrete Reinforcing Steel Institute.

Software We Use for Rebar Detailing

With respect to our client’s requirement, we work on following software to provide the desired output. Software includes RebarCAD & MS-Excel, AutoCAD, Revit, RCCAD, Applied System Associates (ASA) – ASA Cad/Detailing and estimating software, and Tekla Structures.


Accurate and On-Time Delivery

Investing an extra time and effort on rebar drawings definitely saves you a ton of time and money at your shop as well as job site. These accurate rebar drawings simplify the task of the workers at the site. Workers know where to place and thus reduces the installation cost. As a prominent rebar detailing company, RDS truly understands your tight schedules and commitments and thus provide you timely delivery of service.

Our Works

ABUTMENT_WINGWALL

ABUTMENT & WINGWALL
(PENNSYLVANIA)

VIEW PROJECT

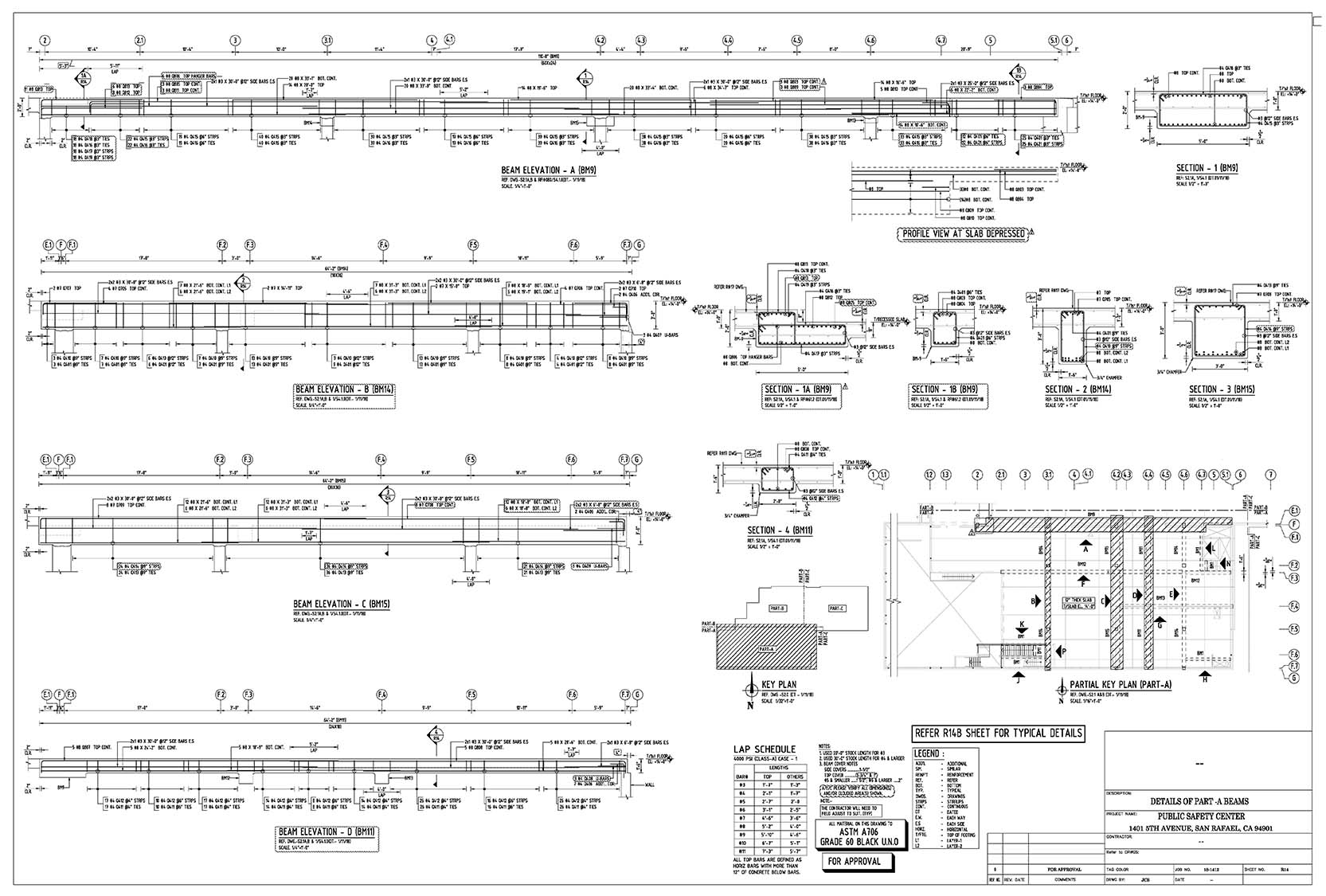

beams

BEAMS
(MARYLAND)

VIEW PROJECT
CHANNEL_DETAILS

CHANNEL DETAILS
(HAWAII)

VIEW PROJECT

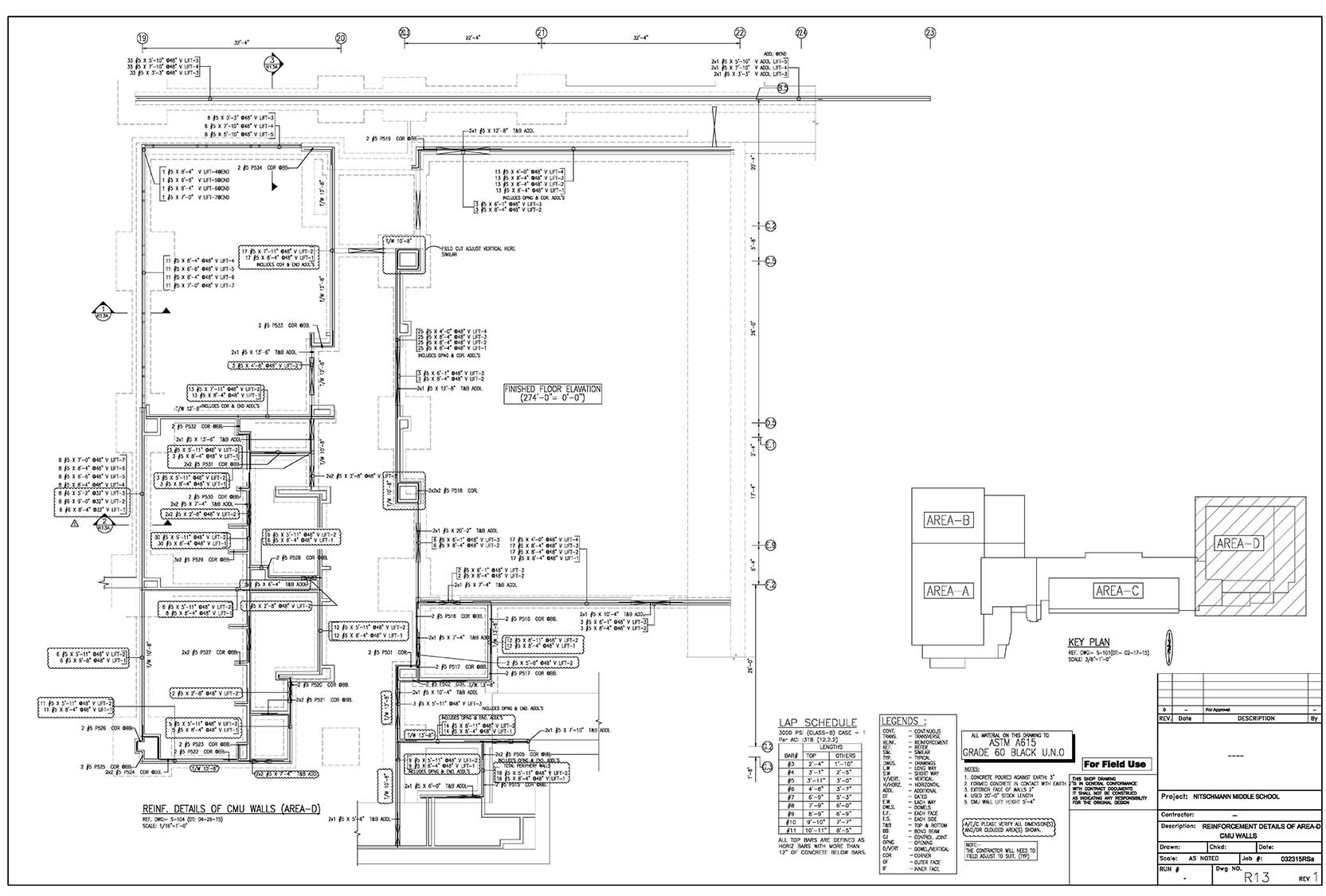

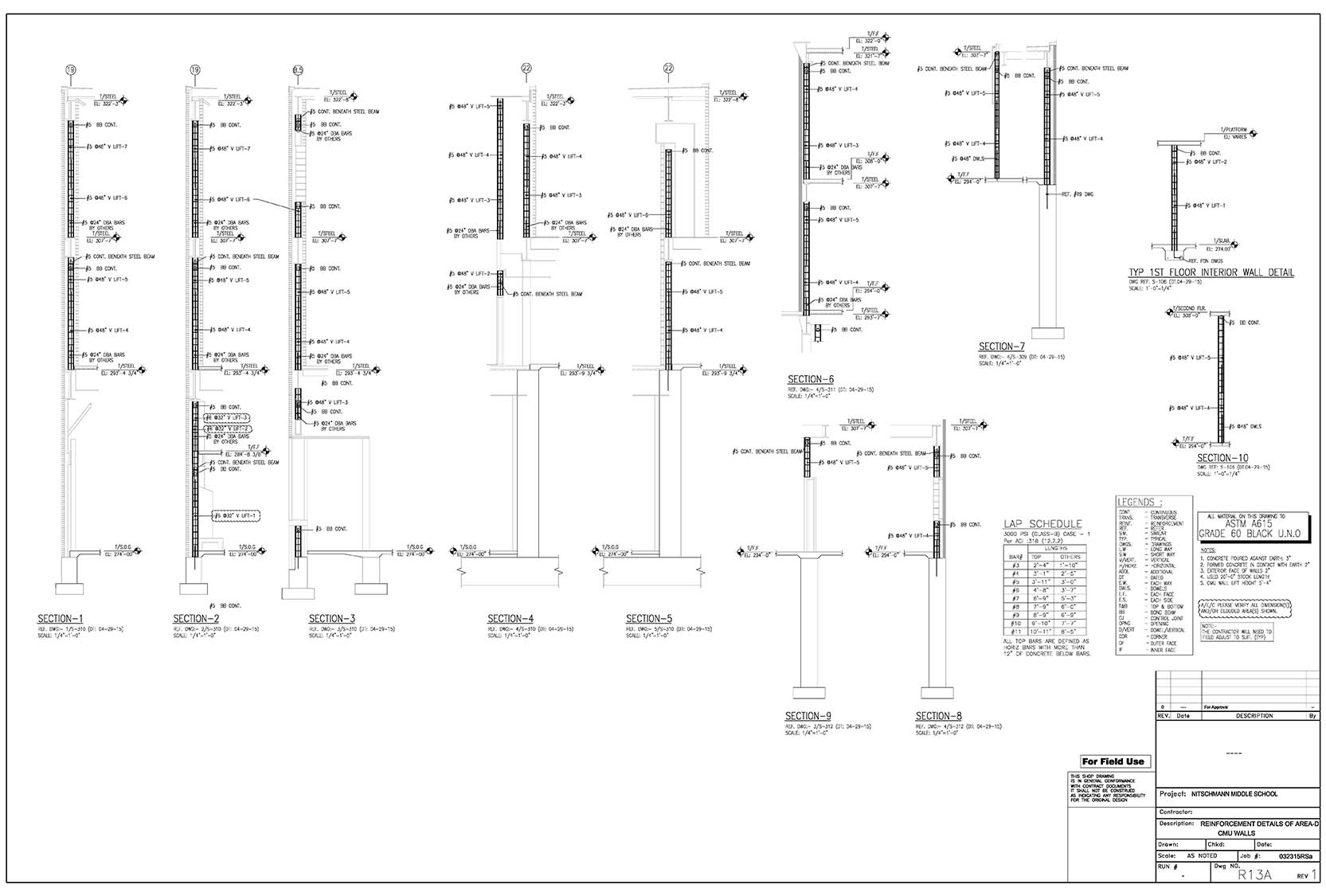

CMU_WALLS

CMU WALLS
(CALIFORINA)

VIEW PROJECT

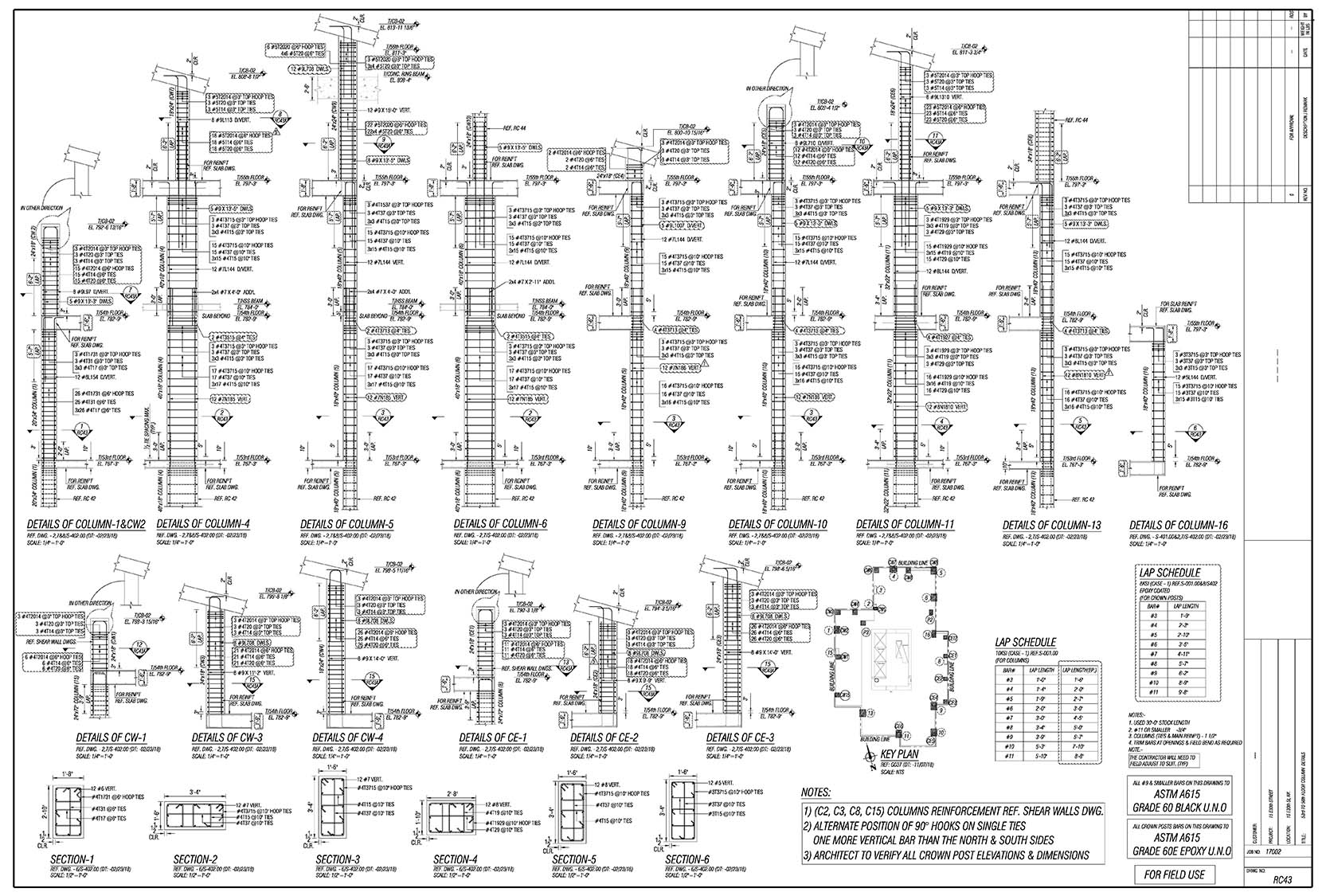

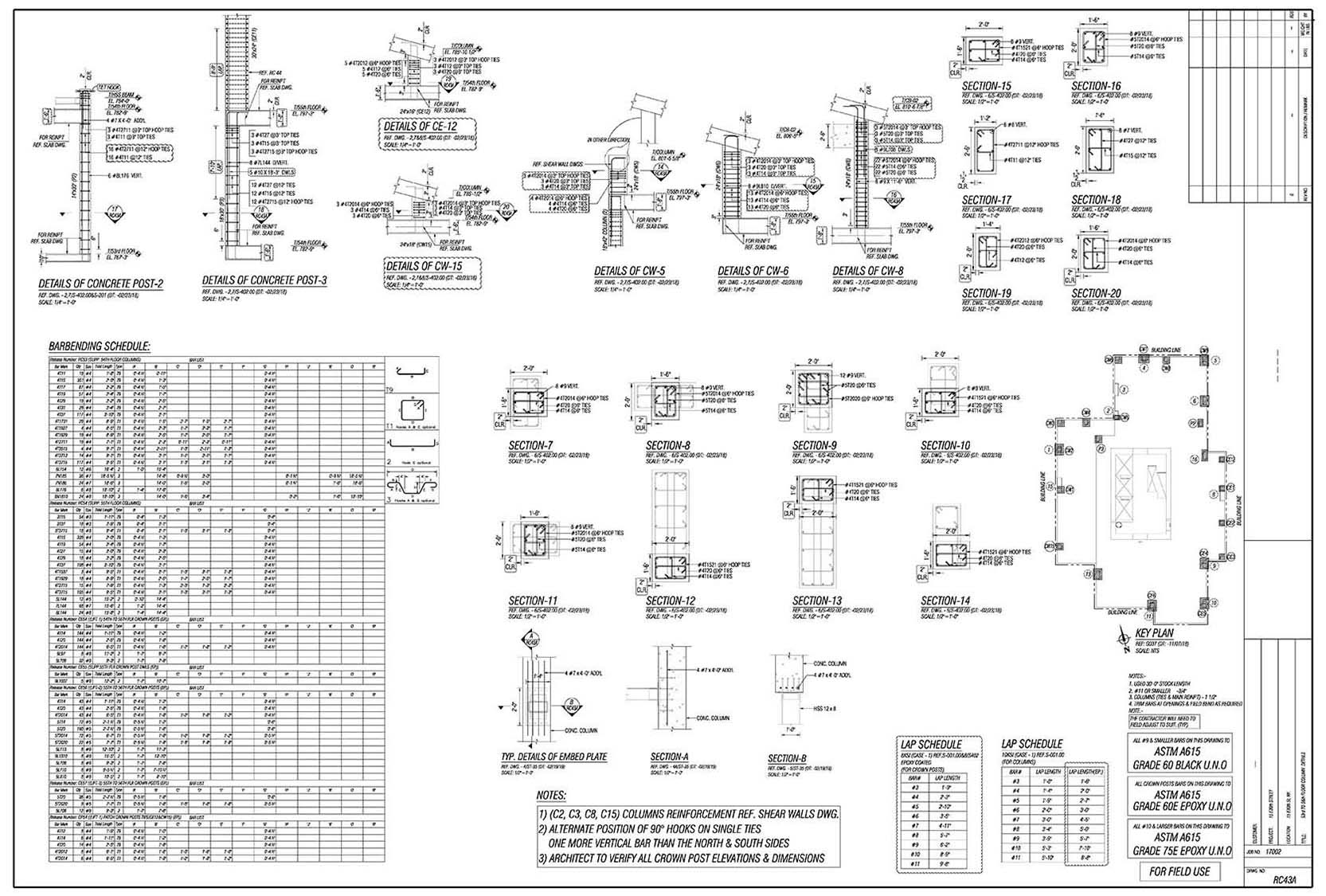

COLUMNS

COLUMNS
(NEW YORK)

VIEW PROJECT
DECK_SLAB

DECK SLAB
(NEW YORK)

VIEW PROJECT

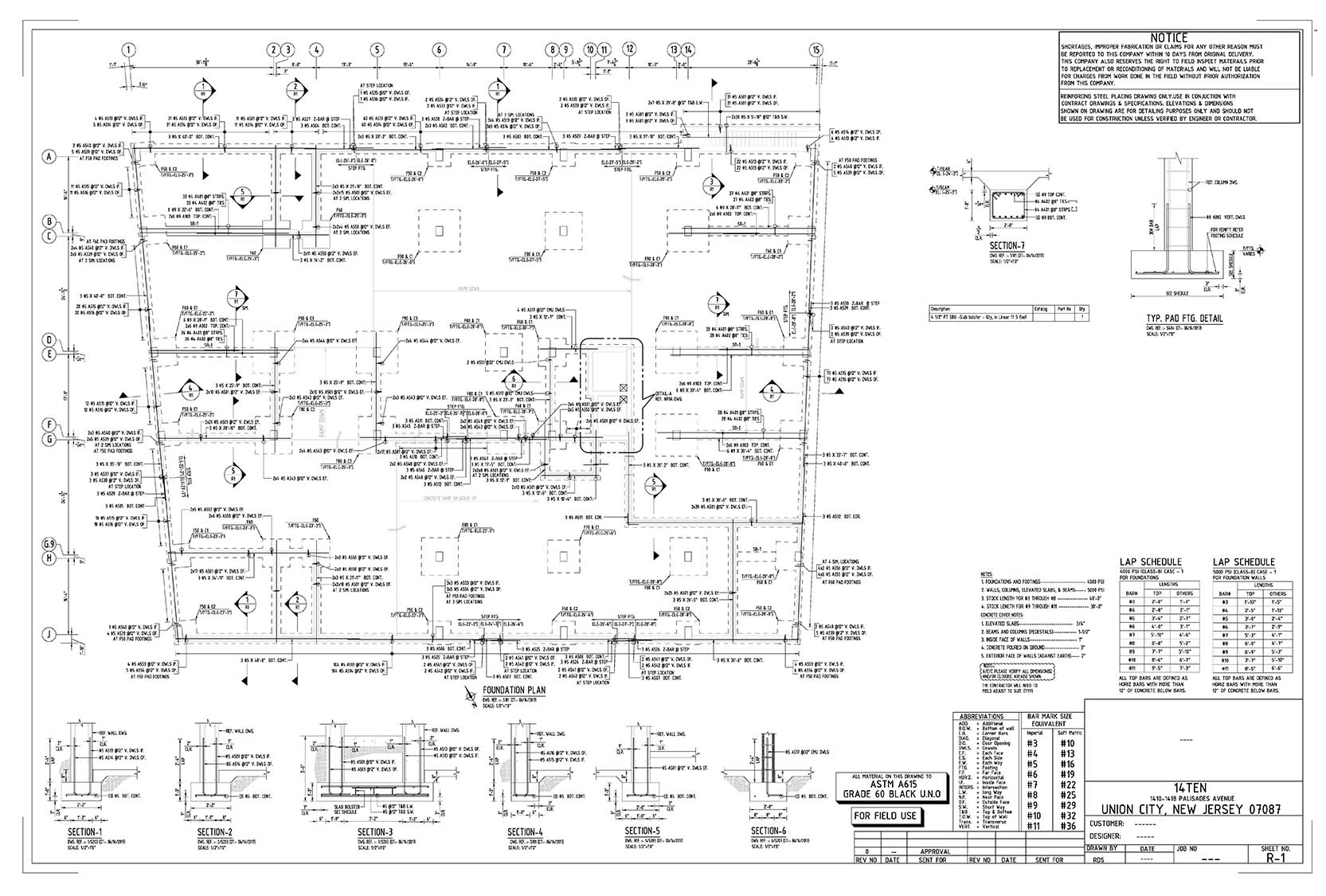

MAT_SLAB

MAT SLAB
(CALIFORNIA)

VIEW PROJECT
SLAB_ON_GRADE

SLAB ON GRADE
(CALIFORNIA)

VIEW PROJECT

Please feel free to contact us for further information.
